PipeBase: Pipe Fitter Charts
KEVIN BROWN · Reference
Independent analytics for this App Store listing. AppTracker is not affiliated with KEVIN BROWN.
Chart standing · US
What changed · US
Listing changes AppTracker has observed for this app in this storefront — new versions, price moves, rating shifts, and store copy.
Bug-fix release from a full on-device QA pass. • Flange bolt-up diagram now shows the true star tightening sequence • Trade calculator: +/− applies to the whole feet-inch entry, and ⌫ undoes the feet key • Flange type follows the wheel when a class or size doesn't offer it • Cleaner dimension captions on Fittings, Flanges and Branch Connections • Search matches sizes exactly ("sch 80 6" is the 6" pipe) • Fittings weights no longer wrap on iPhone; landscape puts the wheels beside the drawing • Gaskets listed under Settings → Data sources; per-row flange source label
Price & rating history · US
Reconstructed from the listing changes AppTracker has observed in this storefront. A field is charted once it has changed more than once, and each line starts at the value it moved from.
Price · 4.99 USD now · 2 changes on record
In-app purchases · US
No in-app purchases.

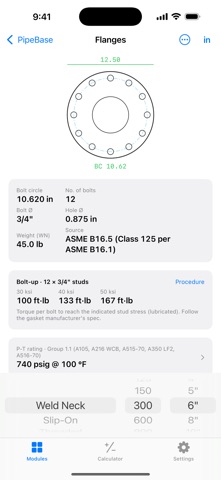

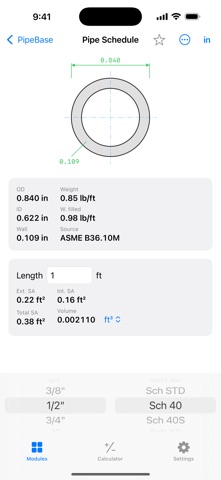

Screenshots
About
The piping reference that field crews and designers actually need — every lookup driven by a live dimensioned drawing, working entirely offline. SEVEN MODULES • Pipe Schedule — ASME B36.10M & B36.19M, NPS 1/8"–48", every schedule including stainless 5S–80S, with a built-in length calculator for surface area, volume, and water-filled weight • Fittings — B16.9 butt-weld (elbows, tees, reducers, caps, stub ends) and B16.11 forged socket-weld & threaded, classes 3000/6000/9000 • Flanges — B16.5 Class 125–2500 plus B16.47 Series A & B through 48", with drilling, bolting, and weights • Valves — B16.10 face-to-face and end-to-end for gate, globe, check, and ball valves, RF/BW/RTJ • Branch Connections — MSS SP-97 Weldolet, Sockolet, Thredolet • Line Blanks — B16.48 spectacle blinds, paddle blanks, and spacers • Gaskets — B16.21 flat ring and full face with drilling BUILT FOR THE FIELD • Global search: type "2 300 wn" and jump straight to the 2" Class 300 weld neck flange • Tap any drawing to flip decimal ⇄ trade fractions (nearest 1/16") • Inch/mm everywhere, NPS or DN, your choice • Pressure–temperature ratings per class (material group 1.1) • Bolt-up data: stud counts and sizes, torque-per-stress tables, and a star-pattern tightening sequence drawn for your flange's bolt count • Feet-inch-sixteenths trade calculator with memory • Favorites, recents, side-by-side schedule comparison, and shareable datasheets with standard citations • 100% offline — nothing to sign into, nothing tracked, no ads EVERY NUMBER VERIFIED Dimensional data is compiled from published tables of the governing ASME/MSS standards and locked by automated cross-checks against independent sources. Every value cites its standard. Always verify critical dimensions against the current standard edition before fabrication.
What's new · 1.0.1
Bug-fix release from a full on-device QA pass. • Flange bolt-up diagram now shows the true star tightening sequence • Trade calculator: +/− applies to the whole feet-inch entry, and ⌫ undoes the feet key • Flange type follows the wheel when a class or size doesn't offer it • Cleaner dimension captions on Fittings, Flanges and Branch Connections • Search matches sizes exactly ("sch 80 6" is the 6" pipe) • Fittings weights no longer wrap on iPhone; landscape puts the wheels beside the drawing • Gaskets listed under Settings → Data sources; per-row flange source label
