StagePlot Cable Map

About

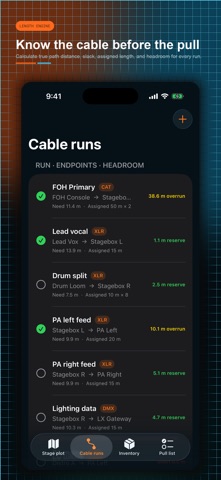

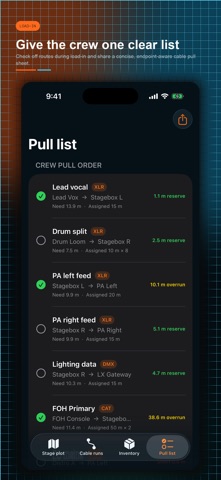

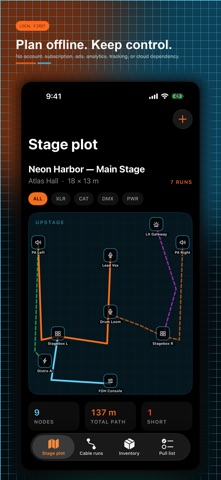

StagePlot Cable Map is an offline routing desk for production crews who need every audio, data, DMX, and power run to reach—with the right amount of cable and no last-minute guesswork. Lay out equipment on a scaled stage, route cables through practical waypoints, and see the true path length with configurable slack. Match each run to a standard cable length, expose shortages and excessive overrun, and turn the finished plan into a concise pull list for load-in. FEATURES • Top-down scaled stage blueprint with equipment nodes • Audio, data, DMX, and power route overlays • Route waypoints and stage-scale distance calculation • Per-run slack, quantity, and assigned cable length • Short-cable and excessive-overrun warnings • Inventory fit grouped by cable type and length • Tap-through crew pull checklist • Shareable text pull sheet • Dedicated iPad split workspace • Private by design: no account, tracking, ads, or cloud dependency Ideal for live sound, touring, theatre, broadcast, houses of worship, festivals, and venue production teams.
