Pipe Offset
Laure Shin · Utilities
Independent analytics for this App Store listing. AppTracker is not affiliated with Laure Shin.
Chart standing · US
What changed · US
Listing changes AppTracker has observed for this app in this storefront — new versions, price moves, rating shifts, and store copy.
Pipe Offset 2.0 adds fabrication tools and clearer fitting data. • EN/DN metric profiles alongside ASME/NPS and copper. • Fitting dimensions with source labels and measured-value entry. • Independent fittings A and B, with the cut piece and each deduction shown together. • Corrected equal-spread bank calculations and cumulative marks. • Target-run and obstacle calculations. • Branch templates for centered, oblique and eccentric connections. • Segmented elbows and tiled 1:1 PDF templates. • Saved jobs for offsets, branches and elbows, plus paginated PDF cut sheets. • Revised French trade vocabulary and metric input handling. Simple and rolling offsets with the default elbow family or measured values remain available without purchase. The one-time unlock includes the additional catalogues, fabrication tools, saved jobs and PDFs.
Ratings breakdown · US
The star breakdown behind this app's rating in this storefront.
In-app purchases · US
What this app sells inside itself, grouped by kind and priced for this storefront.

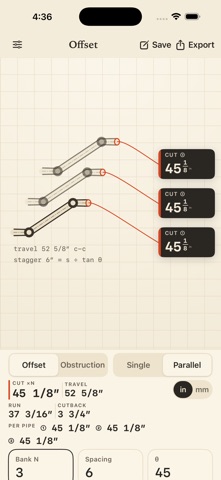

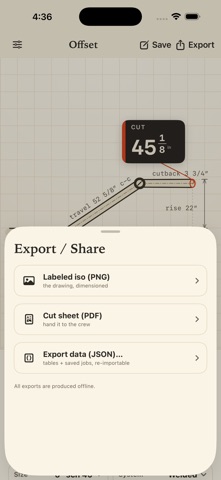

Screenshots
About
Calculate the pipe cut length between two real fittings. Pipe Offset shows the cut piece, center-to-center travel, fitting deductions and joint gaps together, so you can follow the calculation from layout to cut. Built for pipefitters and steamfitters working with metric or imperial dimensions. Choose EN/DN, ASME/NPS or copper profiles, or enter a custom outside diameter. Fitting values carry source labels: standard, catalogue, theoretical or measured. When a table does not cover your fitting, enter its measured dimensions. OFFSETS AND FITTINGS Solve simple and rolling offsets. With the unlock, select fittings A and B independently at a shared angle, lay out parallel banks with cumulative marks, solve for a target run, or account for an obstacle and clearance. The drawing highlights the cut piece and shows the dimension chain. BRANCHES AND SEGMENTED ELBOWS Lay out branch connections with numbered ordinates for the branch cut and header opening. The unlock adds oblique and eccentric branches, segmented elbows and printable 1:1 PDF templates. Templates tile across A4 or Letter pages with a calibration ruler and overlap marks. Save offsets, branches and elbows as jobs and export PDF cut sheets. INCLUDED WITHOUT PURCHASE Simple and rolling offset calculations, axis dimensions and cut length using the region's default butt-weld elbow family, ASME LR or EN 3D, or your measured fitting values. Also includes one on-screen example of a centered branch at 90°. ONE-TIME UNLOCK One non-consumable purchase opens all included fitting catalogues, independent A/B fitting selection, parallel banks, target-run and obstacle tools, full branch tools, segmented elbows, saved jobs and PDF exports. No subscription. Restore Purchases is available in Settings. Works offline. No account or login. Saved jobs use local app storage.
What's new · 2.0
Pipe Offset 2.0 adds fabrication tools and clearer fitting data. • EN/DN metric profiles alongside ASME/NPS and copper. • Fitting dimensions with source labels and measured-value entry. • Independent fittings A and B, with the cut piece and each deduction shown together. • Corrected equal-spread bank calculations and cumulative marks. • Target-run and obstacle calculations. • Branch templates for centered, oblique and eccentric connections. • Segmented elbows and tiled 1:1 PDF templates. • Saved jobs for offsets, branches and elbows, plus paginated PDF cut sheets. • Revised French trade vocabulary and metric input handling. Simple and rolling offsets with the default elbow family or measured values remain available without purchase. The one-time unlock includes the additional catalogues, fabrication tools, saved jobs and PDFs.
