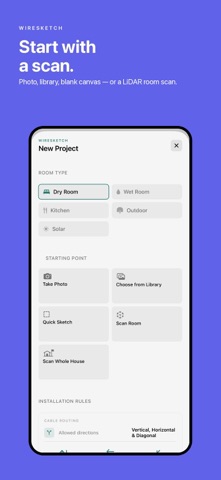

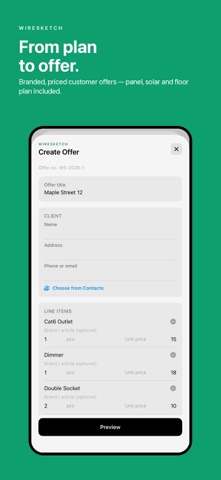

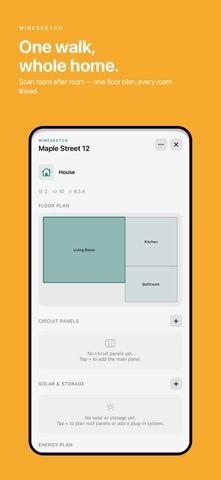

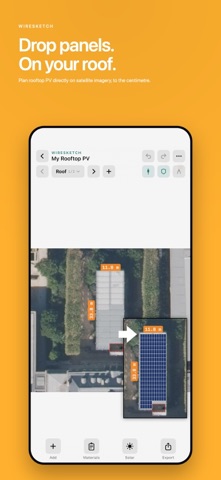

Design your electrical layout on a photo of your actual wall — sockets, switches, lights, EV charger — and hand your electrician a plan they can price. Scan, safety zones, panels, solar. HOW IT WORKS Photo your wall, start on a blank canvas, or scan the room. Set dimensions in cm — region-aware zones and heights appear. Place fixtures. Export to PDF, PNG, or CSV — annotated photo or clean IEC 60617 schematic. SCAN YOUR ROOM (Pro) Pan a LiDAR iPhone or iPad once around the room — it recognizes walls, openings, even furniture. Every wall becomes a measured canvas with doors and windows drawn at true size and position. Review the measurements before the plan is created; adjust or add openings anytime. ROOM SKETCH SHARING Export any wall or property as a calibrated Room Sketch — photo + scale in an open format read by companion planners (PipeSketch for plumbing, RenovMate for renovation): every trade on the same measured room. HOMES — GROUP ROOMS UNDER ONE ROOF Group rooms under a House, Flat, Garage, or Commercial property. GPS resolves the electrical region; every room shares one code. CIRCUIT PANELS (Pro) Lay out every breaker — label, amps, curve. The wand auto-fills the panel from your fixtures: appliances get dedicated circuits, EV chargers the right amperage. Live warnings flag overloads. Main + sub-panels, printable Panel Report PDF. THE RENOVATION BRIEF (Pro) The full PDF for your electrician: cover, wall sketches, materials list, plus a "Questions for my electrician" checklist to discuss first. 40+ FIXTURE TYPES Sockets, switches, dimmers, lights, Cat6/TV outlets, floor heating, kitchen appliances, outdoor sockets, garden lights, EV chargers, smoke detectors, RCD/GFCI, junction boxes, conduit, distribution boards. SAFETY ZONES BY REGION Four standards, named by the standard not the region: DIN 18015 + VDE 0100 (DE; a start for AT/CH/NL), BS 7671 (UK, 18th ed. A2 2022), NEC base (US planning reference, not jurisdiction-compliant), AS/NZS 3000 (AU/NZ). Wet rooms apply IEC 60364 Zone 0/1/2. Outdoor: IP65/IP67 + 60 cm burial. Limits we don't hide. France (NF C 15-100), Spain, Italy, Belgium, Switzerland, and Canada aren't separate selectors — layout planning only. NEC state amendments and AFCI dwelling-unit rules are out of scope. A licensed electrician must verify before installation. ROOM TYPES + TEMPLATES (Pro) Dry room, wet room, kitchen, outdoor — each with fixture heights and installation rules. 17 layouts from home to workshop and commercial. CABLE & MATERIAL ESTIMATE Per-circuit cable type and size (NYM-J for EU, Twin & Earth for UK, NM-B for US, TPS for AUS), total length, conduit, plus material and labor cost estimates. KNOWLEDGE BASE 33 cited entries on standards, symbols, and formulas. Browse the whole library and read the core articles free; the full set and the four converters (Watts↔Amps, AWG↔mm², voltage drop, solar yield) are Pro. SOLAR PLANNER (separate purchase) Plan your solar system from a satellite snapshot. Automatic panel packing, yearly yield, inverter & battery sizing. WIRESKETCH PRO Free: up to 2 projects, 5 fixtures each. Homes, the core Knowledge Base articles, and the daily highlight are free — the free version is ad-supported, and any purchase removes ads. Pro (one-time, no subscription): room scanning, Renovation Brief PDF, Circuit Panels + Panel Report PDF, unlimited projects/fixtures, multi-wall, templates, cm measurements, full Knowledge Base. Solar Planner is separate. Legacy pack buyers keep everything. Less than an hour of trade labor — and it saves more than that on the first job. 9 LANGUAGES — EN, DE, FR, NL, TR, ES, IT, PL, PT. PRIVACY — Your planning data stays on your device; no accounts, no cloud. The free version is ad-supported. Any purchase removes ads. — WireSketch is a planning tool. All electrical work must be carried out by a qualified electrician per local regulations. EULA: https://www.apple.com/legal/internet-services/itunes/dev/stdeula/
What's new · 2.4
BEFORE & AFTER PHOTOS (new) — Document every surface before you close it up and after it's finished. Photograph the open wall, floor, or ceiling with the cables exposed, then the plastered, painted result — so months or years later you know exactly where the wiring runs behind the surface. Add as many before and after shots as you need per surface, each with its own note. FLOOR & CEILING — Walls aren't the whole story. Add a floor or ceiling to any project as its own surface and give it the same before/after record — ideal for underfloor heating loops, ceiling light drops, and cable routes running overhead. BROWSE & EXPORT — Flip through every surface's before and after shots in one project gallery, and export a clean Before & After PDF to hand to the homeowner or keep on file — separate from your technical wiring plan. Plus fixes and polish throughout.
