Circuits: 3-Phase Analysis
Gabriel Elias Gabrie Kattan · Utilities
Independent analytics for this App Store listing. AppTracker is not affiliated with Gabriel Elias Gabrie Kattan.
Chart standing · US
What changed · US
Listing changes AppTracker has observed for this app in this storefront — new versions, price moves, rating shifts, and store copy.
Ratings breakdown · US
The star breakdown behind this app's rating in this storefront.
In-app purchases · US
No in-app purchases.
Screenshots
About

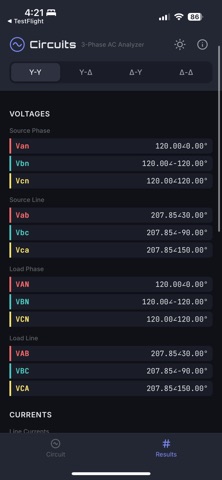

Circuits is a free, interactive tool for analyzing 3-phase AC circuits. Built for electrical engineering students and professionals who need quick, accurate results. TAP. ENTER. CALCULATE. Tap any component on the interactive circuit diagram to enter values in rectangular or phasor form. Press Calculate to get complete results instantly. ALL FOUR CONFIGURATIONS Y-Y (Wye-Wye) Y-Delta (Wye-Delta) Delta-Y (Delta-Wye) Delta-Delta (Delta-Delta) COMPLETE ANALYSIS Source, line, and load voltages Line and phase currents Neutral current (Y-Y) Per-phase and total power (S, P, Q, PF) Interactive phasor diagram FLEXIBLE INPUT Balanced or unbalanced sources and loads Positive, negative, or custom phase sequences Source impedance, line impedance, and neutral impedance Rectangular (a + jb) or phasor (Mag angle) entry PRIVACY FIRST Runs entirely on your device. No account, no tracking, no data collection. Your values never leave your phone.
What's new · 1.1
-Toggle which phasors are displayed on the phaser diagram! -Currents now displayed to 3 decimal places -Print/Export feature
