PHD Actuator Sizing

About

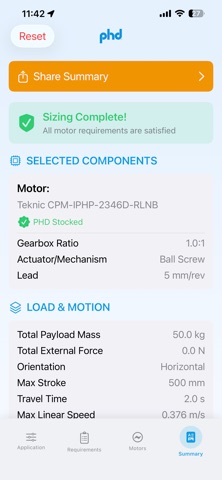

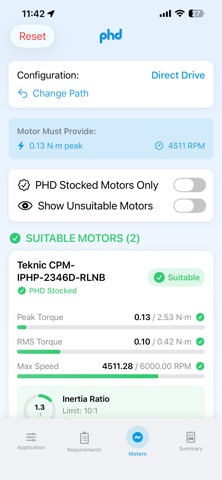

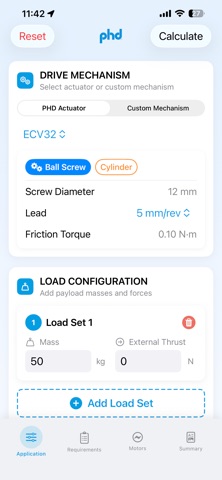

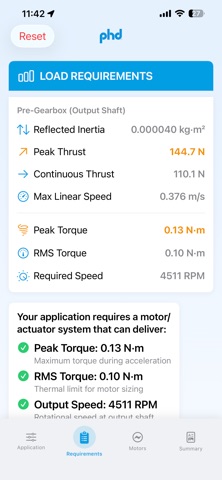

PHD Actuator Sizing Tool is a professional engineering application designed for automation engineers and system integrators. Quickly size Teknic ClearPath servo motors with PHD actuators for your industrial automation applications — right from your iPhone. Key Features: • Select from PHD's full actuator lineup — ECV ball screw cylinders, ESU/ESW ball screw and timing belt slides • Input motion profiles including velocity, acceleration, payload, and orientation • Automatic RMS torque calculations for accurate thermal motor sizing • Inertia ratio verification to ensure stable servo performance • Peak torque and speed checks against motor specifications • Detailed sizing reports with charts and exportable results • Comprehensive Teknic IPHP motor database built in • Clean, fast interface optimized for field and office use Contact info: Krishna Meruva, kmeruva@gmail.com
