Pipe Calc Elite
Cyberprodigy LLC · Utilities
Independent analytics for this App Store listing. AppTracker is not affiliated with Cyberprodigy LLC.
Chart standing · US
What changed · US
Listing changes AppTracker has observed for this app in this storefront — new versions, price moves, rating shifts, and store copy.
NEW • Threaded elbow take-outs: Class 150 and 300 malleable iron (ASME B16.3) with the matching Class 125 and 250 cast iron (ASME B16.4), and Class 3000 and 6000 forged steel (ASME B16.11), with take-out, cut length and thread make-up. • Valves and fittings in pressure loss: ten fittings, from 90 and 45 elbows to gate, globe, angle and swing check valves, with ASHRAE loss coefficients by pipe size and joint type, on Colebrook-White friction, the basis of the Moody chart. • Water temperature: enter 32 to 212°F, from chilled to boiler water, and pressure loss uses the viscosity at that temperature. • When the fittings are longer than the centerline allows, the cut length shows "Short By" and the amount, so you know how much to change. • Stored values are saved between launches, and a recalled value can start or finish a calculation. • Hold for help: hold Offset, Travel, Convert or any other function key for about a second and the manual opens at that key's section, with its worked examples. IMPROVED • Switching pipe material keeps your pipe type when the new material offers it, such as Schedule 80. • A new dark design for every picker and results sheet, with support for larger text sizes. • An updated user's manual that covers every key, built in under Help.
Price & rating history · US
Reconstructed from the listing changes AppTracker has observed in this storefront. A field is charted once it has changed more than once, and each line starts at the value it moved from.
Average rating · ★ 4.82 now · 2 changes on record
Ratings breakdown · US
The star breakdown behind this app's rating in this storefront.
In-app purchases · US
No in-app purchases.

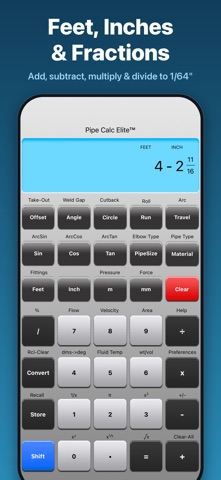

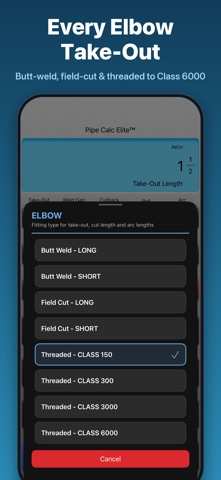

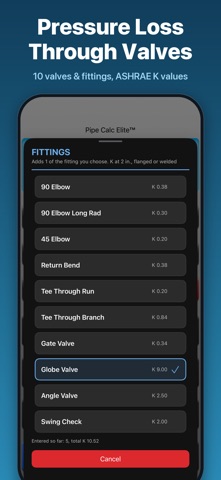

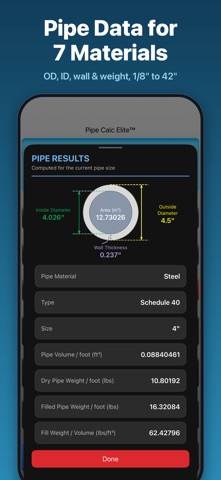

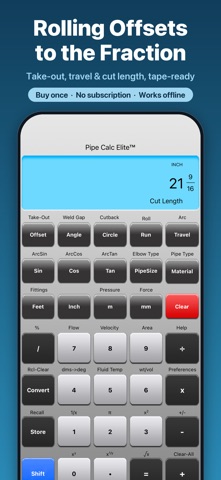

Screenshots
About
Pipe Calc Elite is the pipe trades calculator for pipefitters, plumbers, steamfitters, welders and sprinkler fitters. Solve simple and rolling offsets, take-outs and cut lengths in feet, inches and fractions, look up pipe data for seven materials, and work out pressure loss through pipe, valves and fittings. One purchase. No subscription, no ads, no account, and no data collected. Everything, including the full user's manual, works with no signal on the job site. On the App Store since 2013. OFFSETS AND FITTINGS • Simple and rolling offsets: offset, run, travel, roll and advance • Take-out and cut length for butt-weld long and short radius, field-cut, and threaded Class 150, 300, 3000 and 6000 elbows • Thread make-up by pipe size, or enter your own • Welder's gap, cutbacks, arc lengths and odd-angle fittings • Enter your own take-out when your fittings differ from the standard • When the fittings are longer than the centerline allows, the cut length shows how much you are short • Slope, grade, drop per foot and fitting angle PIPE DATA • Steel, Stainless Steel, Cast Iron, Aluminum, Brass, PVC and Copper, 1/8" to 42", with dimensions per ASME B36.10 and B36.19 and the ASTM copper and PVC standards • Schedules 10 to 160, Standard, Extra Strong and Double Extra Strong; stainless 5S to 160S; PVC Schedule 40, 80, 120 and SDR 21 to 41; copper Type K, L, M, DWV, Medical and ACR • Inside and outside diameter, wall thickness, internal area, volume per foot, and dry and filled weight per foot, with a cross-section drawing • Filled weight for water or any fluid density you set FLOW AND PRESSURE LOSS • Pressure loss by flow rate or velocity, per foot or over a run • Darcy-Weisbach with Colebrook-White friction • Ten valves and fittings, with loss coefficients from the ASHRAE Handbook by size and by threaded or welded joint • Water temperature from 32 to 212°F sets the viscosity • Answers in psi, psf, feet of head, inches of mercury, kPa and bar, with the Reynolds number and friction factor used • Flow, velocity, force, pressure and area solved from each other CALCULATOR AND CONVERSIONS • Add, subtract, multiply and divide feet, inches and fractions, down to 1/64, with meters and millimeters mixed in • Areas and volumes carry their units: 5 in x 5 in is 25 square inches • Conversions for length, area, volume, weight, flow, velocity, pressure, force and temperature • Sine, cosine, tangent and their inverses, degrees-minutes-seconds, powers and roots, and percent • Store values and recall them later, even after the app is closed The full user's manual, with worked examples, is built in: hold Offset, Convert or any other function key to open it at that key's section. Technical support is free. If you have questions, suggestions for improving this app, or find a bug, please email us at techsupport@cyberprodigy.com and we will respond as soon as possible. Pipe Calc Elite™ is not associated with Pipe Trades Pro™ and Cyberprodigy LLC is not affiliated with Calculated Industries, Inc.
What's new · 1.4.0
NEW • Threaded elbow take-outs: Class 150 and 300 malleable iron (ASME B16.3) with the matching Class 125 and 250 cast iron (ASME B16.4), and Class 3000 and 6000 forged steel (ASME B16.11), with take-out, cut length and thread make-up. • Valves and fittings in pressure loss: ten fittings, from 90 and 45 elbows to gate, globe, angle and swing check valves, with ASHRAE loss coefficients by pipe size and joint type, on Colebrook-White friction, the basis of the Moody chart. • Water temperature: enter 32 to 212°F, from chilled to boiler water, and pressure loss uses the viscosity at that temperature. • When the fittings are longer than the centerline allows, the cut length shows "Short By" and the amount, so you know how much to change. • Stored values are saved between launches, and a recalled value can start or finish a calculation. • Hold for help: hold Offset, Travel, Convert or any other function key for about a second and the manual opens at that key's section, with its worked examples. IMPROVED • Switching pipe material keeps your pipe type when the new material offers it, such as Schedule 80. • A new dark design for every picker and results sheet, with support for larger text sizes. • An updated user's manual that covers every key, built in under Help.
